Oracle Custom WEB ADI Setups and Process for AP Invoice Interface

Introduction:

There are basically two ways to enter data into Oracle: by typing it into a user interface (Java Form or Web Page) or by taking a file and programmatically interfacing the data.  Web ADI falls into the second category in that it takes an Excel file and programmatically loads the data into Oracle.  If you find it easier to enter data into Excel than Oracle forms, you should look into using Web ADI.

Downloading a Web ADI

The first step in downloading a template is to locate the responsibility and menu that is linked to that template.  Some templates can be downloaded from the Desktop Integration menu and others must be downloaded from a specific responsibility.  For security, some templates are linked to specific responsibilities.  For example, we can download the GL Journals template from the Desktop Integration responsibility but we can’t download the Project Transaction Import template from the same responsibility.

To download a template you will use the following components: integrator, viewer, layout, and content. Based on how the menu is setup, some of these components may default for you.

Integrator

The integrator defines what data you will be uploading to Oracle.  Each integrator serves a specific purpose and cannot be used to enter other data.

Viewer

The viewer is the Microsoft program you will use to enter data into the template

Layout

The layout is how the data columns are organized on the template.  You have two main sections to a template: a header and lines.  The header information applies to all the lines when the data is uploaded to Oracle.

Content

The content is a text file that you can import into your template.  You can use this feature if you have an external system that outputs text file and you want to import that into the template.

Pre-requisites for working on Development or use of WEBADIs

1.Check the value for profile option named BNE Allow No Security Rule and set the value to Yes



2. Enable the Macros options for your excel sheet

Select Excel option to set the properties

Click on Trust Centre -> Trust center Settings

Select Macro Settings -> Enable all macros and check the option Trust access to the VBA Project object model

Apply and save your settings

Assign responsibility Oracle WEBADI or Desktop Integrator to do the development of new WEBADIs

Compile the below Custom table and Package in APPS schema

CREATE TABLE XXAA_APINV_IFACE_TBL

PACKAGE XXAA_APINV_IFACE_PKG

PROCEDURE XXAA_APINV_IFACE_LOAD_PRC

PROCEDURE XXAA_APINV_IFACE_IMPORT_PRC;

--> ====================================================================

Integrator

1. Create Integrator

Navigation : Desktop Integration Manager Responsibility-> Create Integrator

Integrator Name       : XXAA APINV Interface Integrator

Internal Name           : XXAA_APINV_IFACE_INTEGRATOR

Application                : Payables

Click on Next button

2. Create Interface

Interface Name           : XXAA APINV Interface

Interface Type             : API – Procedure

Package Name            : XXAA_APINV_IFACE_PKG

Procedure/Funtion    : XXAA_APINV_IFACE_LOAD_PRC

API Returns                : FND Message Code

Click on Apply button

Select the Interface and Click on Next button

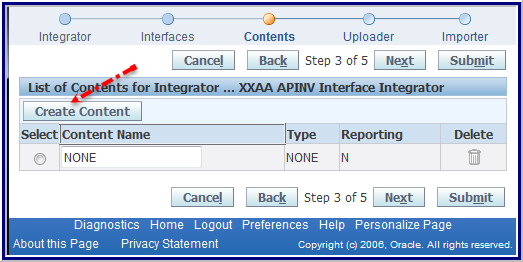

3. Create Content

Content Name                       : XXAA APINV Interface Content

Content Type             : Text File

Number of columns   : 9

Apply

Rename the display names as per csv header columns for better under standing

And provide the content parameter (download parameter) as Web ADI: Download "Text File" Parameters

4. Create Uploader

5. Create Importer

Select importer type as PL/SQL API

Importer Name                      : XXAA_APINV_IFACE

Click on PL/SQL API Call plus button to add our custom procedure

Enter following information

API Type                    : PL/SQL Procedure

Package Name           : XXAA_APINV_IFACE_PKG

Procedure Name        : XXAA_APINV_IFACE_IMPORT_PRC

API Returns                : FND Message Code

Click on apply and then submit button



Layout

1.                  Create Layout

Navigation: Desktop Integration Responsibility àDefine Layout

Select the integrator àGo àCreate button

2.                  Enter the name           : XXAA APINV Interface Layout

3.                  Include the fields in layout, Select the line in Placement

Click on Apply button

2. Define Mapping

1.                  Define mapping

Navigation: Desktop Integration Responsibility -> Defining mapping-> select integrator-> go

2.                  Click on define mapping button

3.                  Enter the mapping details

Mapping Name         : XXAA APINV Interface Mapping

Mapping Key             : XXAA_APINV_IFACE_MAPPING

Number of column    : 9

4.                  Map the source and target columns

3. Create Document

1.                  Create Document :- Test the document with sample data

Navigation: Desktop Integration Responsibility -> Create Document -> select integrator

2.                  Select the desktop application like excel or word

3.                  Select the layout if there are multiple layouts

4.                  Select the content

5.                  Select the data file

6.                  Select the NONE to open the Excel file

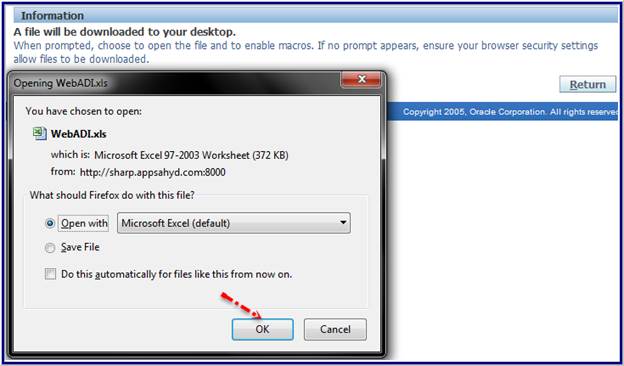

7.                  Click on create document button

8.                  Click on create document button to download the sheet

Enter the data and upload and verify the invoice number from application

Note: we have developed the sheet. Now it needs some cosmetic changes

Changes

1.                  Change the Labels of fields

Navigation: Go to integrator-> Interface-> Enter the Integrator name and click on Go

Click on Update button

Click on Next

Select the Integrator

Change the Prompt Left Label



Click on the Update button and change Above Prompt then Save and Submit

è    Create the document to check new changes

2.                  Assign LOV and hints to the columns

Navigation: Go to integrator-> Interface->click on update button of respective attribute (say P_INVOICE_CURRENCY) to add LOV

check the not null check box to indicate required columns in spread sheet

Select the validation type as table and enter below information

Validation Type                     : Table

Id Column                  : CURRENCY_CODE

Meaning Column       : CURRENCY_CODE

Desc Column              : CURRENCY_CODE

Validation Entity        : FND_CURRENCIES

Provide the information under user hint text item as ‘*List–Text’ to give an idea user about what value should be entered or select

è    Do the same for other columns too then save and get the new document to see the changes

3.                  Add default value as ‘USD’ to currency code item

Navigation: Go to integrator-> Interface-> select the default type and default value for currency code attribute

Do the changes for all required fields

Result

Defining the Form Function for Integrator

Define the form function for integrator to run the custom ADI document from any responsibility

1.                  Define the custom Form Function

Navigation -> Application Developer -> Application -> Function

Function                     : XXAA_APINV_IFACE_FF

User Function Name : XXAA APINV Interface Integrator

Properties àType - SSWA servlet function

Form àParameters

bne:page=BneCreateDoc&bne:viewer=BNE:EXCEL2007&bne:reporting=N&bne:integrator=USER_NAME:XXAA APINV Interface Integrator&bne:noreview=Yes

Web HTML àHTML Call : BneApplicationService

Save it.

Assign Function to Custom Menu

Go and add the function into the custom responsibility

Navigation-> Application Developer -> Application -> Menu

Search for your menu where you want to add this ADI

Menu              : AP_NAVIGATE_GUI12

Prompt            : XXAA APINV Interface Integrator

Function         : XXAA APINV Interface Integrator

Now you can navigate to your custom responsibility to see the ADI which you have assigned.

Test the sheet

1.                  Once you create document, it will populate the file data on the sheet

2.                  Fill the required information

3.                  Upload the data into oracle

Navigation: Add-Ins Tab-> Oracle-> Upload

4.                  Once we click on upload button, it will pop up the upload page where we have to select ‘Automatically Submit Import’ check box as we have added import procedure in importer rule. If it is checked then only it will call that import program, otherwise it wont

5.                  If there is any error, then program will return error message and will rollback the transaction

6.                  After correcting the data, run again. And if there is no error, then program will insert all validated data into oracle tables and call the import journal program

Click on Upload button

Wait until Import program completed

7.                  We can monitor the import program from spread sheet itself by clicking on monitor button

Click on the Monitor to check the request id

Nav : Add-Ins àOracle àMonitor

Verify the concurrent request id from application

Click on View Output button

Search with Invoice number from payables responsibility

Check the from the backend tables
