Oracle 10g Forms Development Training Guide

à Download Template.fmb & Appstand.fmb into our local machine from /v02/oracle/apps/apps/apps_st/appl/au/12.0.0/forms/US ($AU_TOP/forms/US) using winSCP tool.

à Check whether form60 path has all the standard Plls & fmbs ,if not down load All the plls from /v02/oracle/apps/apps/apps_st/appl/au/12.0.0/resource ($AU_TOP/resource) location and fmbs from location /v02/oracle/apps/apps/apps_st/appl/au/12.0.0/forms/US ($AU_TOP/forms/US) into local machine and set the FORMS_PATH

à Setting Oracle 10g forms FORMS_PATH in REGEDIT(Registry Editor)
Start àRun àREGEDIT àHKEY_LOCAL_MACHINE àSOFTWARE àORACLE àKEY_DevSuiteHome1 àFORMS_PATH

à Open the TEMPLATE.fmb using form builder.

à Change the module name to your required form name.

à GoTo File àSaveAs the form as same as the module name (i.e Form name & module name should be the same).
Module Name  : XXAA_MASTER_DETAIL_FORM
Title  : XXAA Master Details Form

  à Delete the default blocks, windows, canvases (ex: BLOCKNAME).
0

  à Create a window and assign window property class to windows.
Window Name : XXAA_MASTER_DETAIL_FORM

  à Create a canvas assign the canvas property class to Canvas.

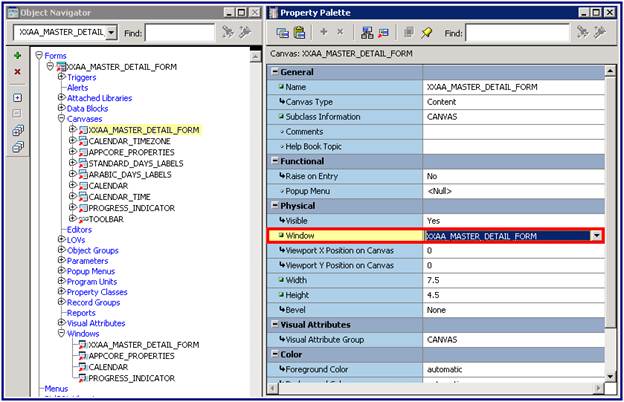

 à Assign windows to canvas

 à Assign canvas to window.

Create the Master and Details tables in apps schema, Create a master table with primary key and detail table with foreign key

CREATE TABLE XXAA_MASTER_TABLE
(
   DEPTNO   NUMBER (2),
   DNAME    VARCHAR2 (14),
   LOC      VARCHAR2 (13),
   CONSTRAINT PK_MASTER_DEPTNO PRIMARY KEY (DEPTNO)
);


CREATE TABLE XXAA_DETAIL_TABLE
(
   EMPNO      NUMBER (4) NOT NULL,
   ENAME      VARCHAR2 (10),
   JOB        VARCHAR2 (9),
   MGR        NUMBER (4),
   HIREDATE   DATE,
   SAL        NUMBER (7, 2),
   COMM       NUMBER (7, 2),
   DEPTNO     NUMBER (2),
   CONSTRAINT PK_DETAIL_EMPNO PRIMARY KEY (EMPNO),
   CONSTRAINT FK_DETAIL_DEPTNO FOREIGN KEY (DEPTNO) REFERENCES XXAA_MASTER_TABLE (DEPTNO)
);

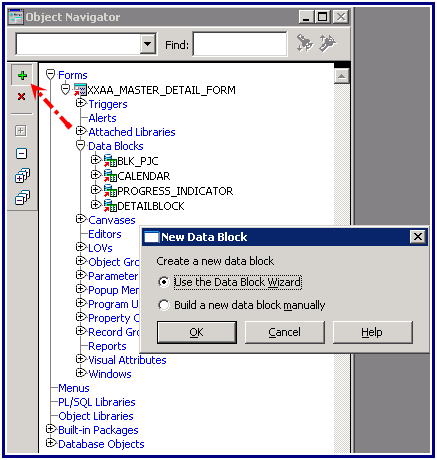

  à Create a data block using wizard based on a required table.(MASTER)




  à Select the master table and move the columns to right side and click on next button


  à Click on Next button

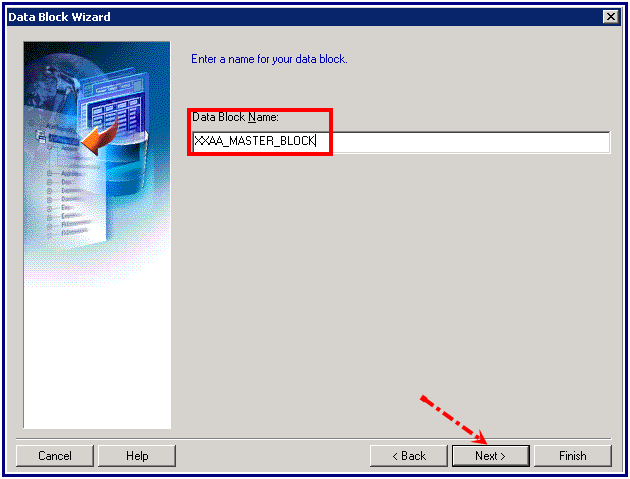

  à Enter the master block name and click on next


  à Create the convas with wizard based on the datamodel by selecting the option






  à Select the Convas and move the required fields to right side and click on next

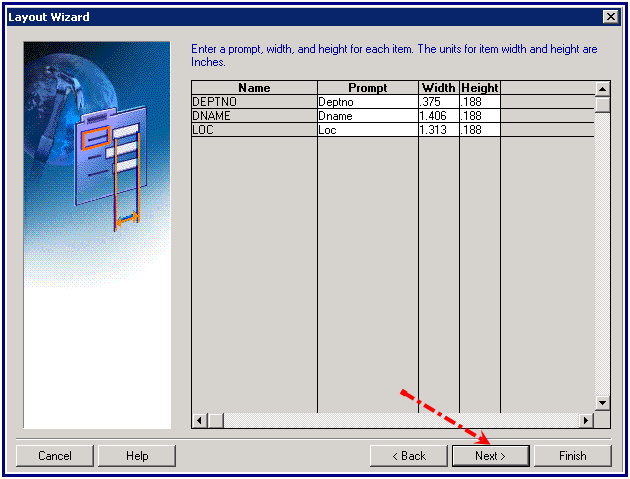

    à Change the fields height and width and click on next


  à Select the form for we can arrange the values based on the requirement.


  à Enter the master block frame if required and click on next


  à Click on finish







à Create a data block using wizard based on a required table.(DETAIL)
Click on Master block and click on new button


  à Select Detail table and move the required columns to right side click on next


    à Click on Create Relationship and sect Auto join






  à Enter the Detail block name


  à Move the required fields to right side and click on next


  à Enter the fields size and prompt.


  à Select the tabular option to show the fields on table type


  à Enter the records to displayed on the forms and select the scroll bar





à Assign all text item property class to all items in the data block.


   à  Modify PRE_FORM trigger at the form level.
         Ex:- app_window.set_window_position ('WINDOW NAME', 'FIRST_WINDOW');
       As Ex:- app_window.set_window_position('XXAA_MASTER_DETAIL_FORM', 'FIRST_WINDOW');


à Modify the app_custom package Body in the program unit.


       Code : sample


package body app_custom is

PROCEDURE close_window (wnd IN VARCHAR2)
IS
BEGIN
   IF (wnd = 'XXAA_MASTER_DETAIL_FORM')
   THEN
            app_window.close_first_window;
   END IF;
END close_window;

PROCEDURE open_window (wnd IN VARCHAR2)
IS
BEGIN
   IF (wnd = 'XXAA_MASTER_DETAIL_FORM')
   THEN
      GO_BLOCK ('XXAA_DETAIL_BLOCK');
   END IF;
END open_window;

end app_custom;


à Modify the module level properties .
           Consol window: give your window name.(XXAA_MASTER_DETAIL_FORM).
            First_navigation data block : your block_name(XXAA_MASTER_BLOCK).


à Save and compile the form(.fmb).

à Move the form(XXAA_MASTER_DETAIL_FORM.fmb) to the $AU_ TOP/forms/US using WINSCP.

à Compile the forms in the $AU_TOP/forms/US by frmcmp command using WINSCP.
EX:
cd $AU_TOP/forms/US

frmcmp_batch module=XXAA_MASTER_DETAIL_FORM.fmb userid=APPS/APPS output_file=$CUSTOM_TOP/forms/US/XXAA_MASTER_DETAIL_FORM.fmx

cp XXAA_MASTER_DETAIL_FORM.fmb $CUSTOM_TOP/forms/US/XXAA_MASTER_DETAIL_FORM.fmb

chmod 777 $CUSTOM_TOP/forms/US/XXAA_MASTER_DETAIL_FORM.fmb
chmod 777 $CUSTOM_TOP/forms/US/XXAA_MASTER_DETAIL_FORM.fmx

cd $CUSTOM_TOP/forms/US



à Now open the apps front-end and open the Forms Form in below Navigation.
Nav : Application Developer àApplication àForm


Form Name                 : XXAA_MASTER_DETAIL_FORM
Application                 : CUSTOM APPLICATION
User Form Name         : XXAA_MASTER_DETAIL_FORM
Description                  : XXAA Master Details Form

à Register the forms to the form function
-->Description
            Function                                 : XXAA_MASTER_DETAIL_FORM
            User Function Name             : XXAA_MASTER_DETAIL_FORM
            Description                             : XXAA Master Details Form
-->Properties
            Type                                        : Form
-->Form
            Form                                       : XXAA_MASTER_DETAIL_FORM

Nav: Application Developer àapplication àFunction






à Query the menu and attach the Form function to the Menu.
Nav : Application Developer àApplication àMenu

Menu                          : FND_DEVNAVIGATE4.0
User Menu Name      : Navigator Menu - Application Developer GUI

Seq                  : 119
Prompt            : XXAA Master Details Form
Function         : XXAA_MASTER_DETAIL_FORM
Description     : XXAA Master Details Form


à This Menu ‘FND_DEVNAVIGATE4.0 (User Menu Name : Navigator Menu - Application Developer GUI)’ is attached to ‘Application Developer’ Responsibility.




à  Open the form by clicking ‘XXAA Master Details Form


à Query the form.
